Exchange office365 integration to Dstny



To be able to see calendar events in Dstny's applications, you need to follow the guide below.



Create app Registration:



Open Azure App registration page on Azure: https://go.microsoft.com/fwlink/?linkid=2083908.

Do the following:

1. Create a new App Registration
2. Name it “Dstny Connect Calendar Synchronization”
3. Set Supported account types to Accounts in this organizational directory only (<Customer Name> only – Single tenant)
4. Leave Redirect URI unchanged
5. Press “Register”
6. Go to the Overview tab for the new App registration and note down Directory (tenant) ID and Application (client) ID values

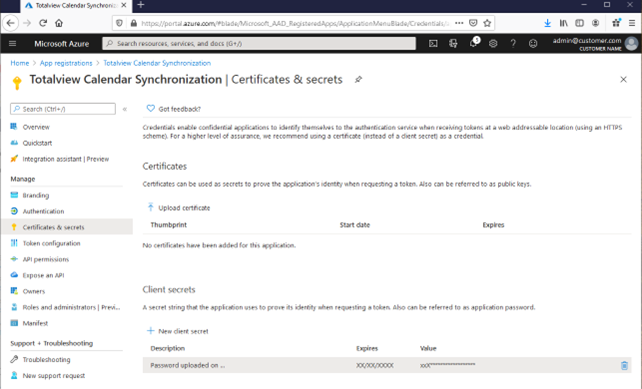

1. Go to the Certificates & secrets tab
2. Press “+ New client secret”
3. Set Expires to a value that you are comfortable with
4. Press “Add”
5. Note down the generated client secret Value (the Client Secret ID can be disgarded - it is not used.)

1. Go to API permissions tab
2. Remove the auto-generated User.Read permission, if present
3. Select “Add a permission”
4. Select “Microsoft Graph”
5. Set type of permission to Application permission
6. Check Calendars.Read, Press “Add permissions”
7. Press “Grant admin consent for <customer name>”. If you do not have permission to do this yourself, forward this task to the relevant person in your company



Create Calendar Connector in Dstny Backend.



1. Login to connect.ipvision.dk as and administrator
2. Choose Organization/Organisation
3. Choose Calendar Connector/Kalenderforbindelser
4. Add New connection/Tilføj forbindelse
5. Insert the informations as below

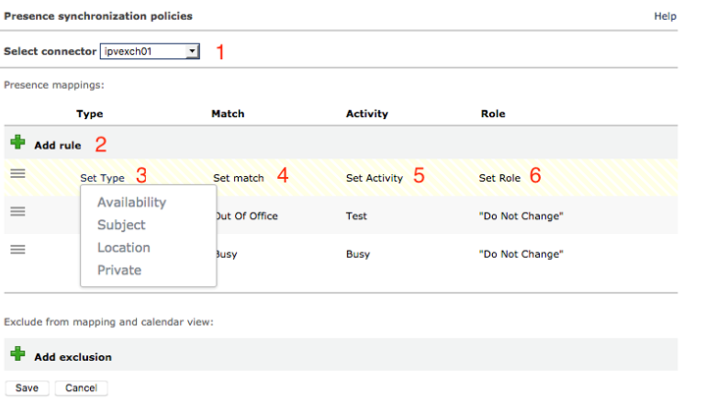

Create Binding to Presence States.

1. Go to services/Tjenester
2. Choose Presence and contacts syncronization/synkronisering af tilstedeværelse
3. Choose your Calendar Connector in the drop down
4. Add your exchange presence, and bind it to Dstny Presence.
